POS Tablets
INV-MH5100-PLUS 10.1"
INV-MH5100-PLUS 10.1"
INV-MH5100-PLUS 10.1"
10.1" Integrated Pad with Intel® Atom™ Z3735F Quad Core™
CPU (1.33GHz up to 1.83GHz) / 2GB DDR3L / eMMC 32GB
or 64GB / Windows 10 IoT Enterprise LTSB 2016 OS (32 bits)
INV-MH5102-PLUS 10.1"
INV-MH5100-PLUS 10.1"
INV-MH5100-PLUS 10.1"
10.1" Integrated Pad with Intel® Atom™ x5-Z8550 Quad Core™ CPU
(1.44GHz up to 2.4GHz) / LPDDR3 2GB or 4GB / eMMC 32GB or
64GB / Windows 10 IoT Enterprise LTSB 2016 OS (64 bits)

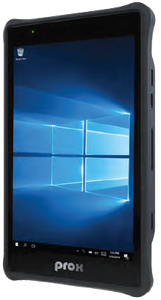

INV-MH5752-PLUS 7.1"

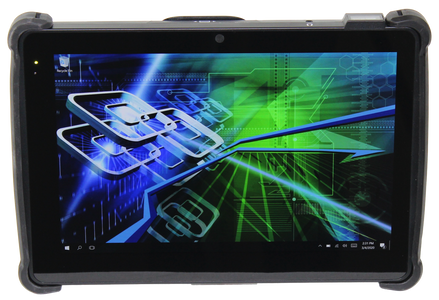

U37-MP 10.1" Mobile POS Station
U37-MP 10.1" Mobile POS Station
7" Integrated Pad with Intel® Atom™ x5-Z8550 Quad Core™ CPU
(1.44GHz up to 2.4GHz) / LPDDR3 2GB or 4GB / eMMC 32GB or
64GB / Windows 10 IoT Enterprise LTSB 2016 OS (64 bits)
U37-MP 10.1" Mobile POS Station
U37-MP 10.1" Mobile POS Station
U37-MP 10.1" Mobile POS Station
The U37-MP10.1 Mobile POS Station is a Perfect Blend of Mobile and Traditional POS, with its Flexibility to use in a stationary fashion or disconnect from the base and move with relative ease, this truly mobile POS terminal fits most applications. Modular POS Peripherals (MSR, 2D barcode scanner, fingerprint and NFC reader) add to this truly unique Mobile POS Station
INV-MH5100-PLUS
Features
● Stylish ID design
● High performance and low power consumption design
with Intel® AtomTM Z3735F Quad CoreTM CPU (1.33GHz
up to 1.83GHz) / 2G DDR3L / eMMC 32GB or 64GB)
● High capacity (8 hours) and removable battery design
● 10.1" LCD panel with P-CAP touch 1280x800 resolution /
30,000 hours lifetime
● Multi function applications (supports 2D barcode scanner /
rear camera 5M / Wi-Fi / Bluetooth / NFC) / MSR /
Smart Card Reader with EMV level 1 & 2
● Light weight design (838 g)
● Drop test 1.2m & IP54 (front panel) design
● Windows 10 IoT Enterprise LTSB 2016 OS (32 bits)
Tablet Specifications
CPU Support: Intel® AtomTM Z3735F Quad CoreTM
CPU Frequency: 1.33GHz up to 1.83GHz
Display: 10.1" 1280 x 800
O.S. Support: Windows 10 IoT Enterprise LTSB 2016 OS (32 bits)
Memory: DDR3L 2GB
Flash: 32GB / 64GB eMMC
Speaker: 1W
Power Requirement: DC 12V
G-Sensor: Yes
Dimensions (WxHxD): 267.84 x 188.5 x 25.2 mm
Weight: 838 g (Pad only)
Certifications: FCC
Capacity: 3.7V, 7900mAh
Battery Operation: 8 hours (refer to JEITA battery run time measurement)
WiFi + BT: 802.11 b/g/n, Bluetooth 4.0
Barcode Scanner: 2D barcode scanner (optional)
Camera Rear: camera 5M pixels (optional)
NFC: NXP NPC300 (optional)
MSR: SecureHead MSR (optional)
Smart Card Reader: Smart card reader (optional) (meet ISO 7816 & EMV Level 1 & 2 certification)
Tablet I/O Ports
SD: Micro SD up to 32GB
USB: Standard USB type A x 1 for external USB device
Audio Jack: ψ3.5 mm
Cradle Connectors: POGO pin for USB x1 / power x1
DC: Jack DC 12V
INV-MH5102-PLUS
Features
● Stylish ID design
● High performance and low power consumption design
with Intel® AtomTM x5-Z8550 Quad CoreTM CPU
(1.44GHz up to 2.4GHz) / LPDDR3 2GB or 4GB /e MMC 32GB
or 64GB
● High capacity (8 hours) and removable battery design
● 10.1" LCD panel with P-Cap touch 1920 x 1200 resolution /
30,000 hours lifetime
● Multi-function applications (supports 2D barcode scanner /
rear or front camera 5M / Wi-Fi / GPS / LTE / Bluetooth® /
NFC) / MSR / smart card reader with EMV level 1 & 2 /
fingerprint reader
● Light weight design
● Drop test 1.2m & IP54 (front panel) design
● Windows 10 IoT Enterprise LTSB 2016 OS (64 bits)
Tablet Specificaitons
CPU Support: Intel® AtomTM x5-Z8550 Quad CoreTM
CPU Frequency: 1.44GHz up to 2.4GHz
Display: 10.1" 1920 x 1200
O.S. Support: Windows 10 IoT Enterprise LTSB 2016 OS (64 bits)
Memory: LPDDR3 2GB / 4GB
Flash: eMMC 32GB / 64GB
Speaker: 1W
Power Requirement: DC 12V / 24V
G-Sensor: Yes
Ambient Light Sensor: Yes
Vibrator: Yes
Dimensions (W x H x D): 267.84 x 188.5 x 25.2 mm
Weight: 838 g (Pad only)
Certifications: CE / FCC / TELEC
Capacity: 3.7V, 7900mAh
Battery Operation: Up to 8 hours (refer to JEITA battery run time measurement)
WiFi + BT: 802.11 ac/a/b/g/n 2T2R for dual band, Bluetooth® 4.1 + EDR
WWAN: Support LTE / UMTS / GSM
GPS: GNSS: GPS / GLONASS / BeiDou / Galileo / QZSS (Optional)
Barcode Scanner: 2D barcode scanner (optional)
Camera: Front camera 5M pixels (optional)
Rear camera: 5M pixels (optional)
NFC: NXP NPC300 (optional)
MSR: SecureHead MSR (optional)
Smart Card Reader: Smart card reader (optional) (meet ISO 7816 & EMV Level 1 & 2 certification)
Tablet I/O Ports
SD: Micro SD up to 128GB
USB: Standard USB 3.0 type A x 1 for external USB device
Audio Jack: ψ3.5 mm, support earphone, microphone
Cradle Connectors: POGO pin for USB x 1 / power x 1
DC Jack: DC 12V / 24V

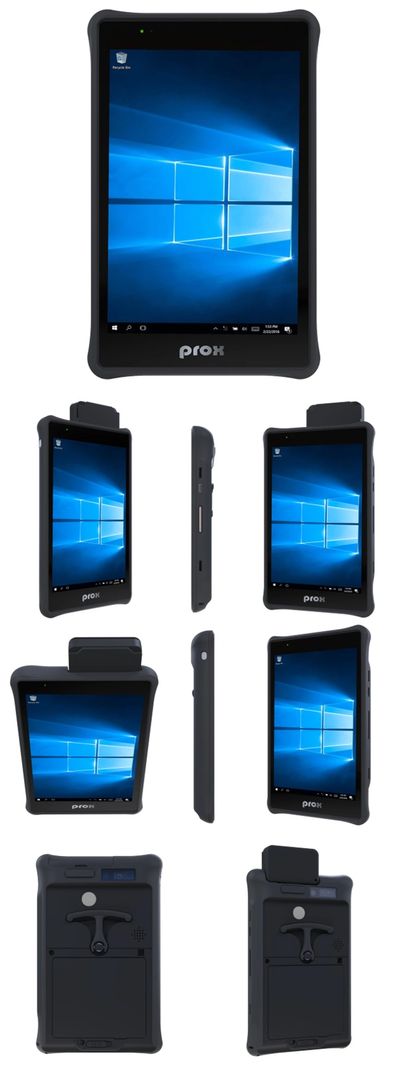

INV-MH5752-PLUS
Features
● Stylish ID and compact design
● High performance and low power consumption design with
Intel® AtomTM x5-Z8550 Quad CoreTM CPU
(1.44GHz up to 2.4GHz) / LPDDR3 2GB or 4GB / eMMC 32GB
or 64GB
● High capacity (7400mAh removable battery design
● 7" 800 x 1280 IPS LED Panel with anti-fingerprint P-Cap
Touch
● OCA Bonding of touch+panel for sunlight readability
● Supports Multi-function applications (optional)
o NFC, 2D Barcode Scanner, MSR_Smart card reader
o WLAN, BT, 4G, 8M Camera (rear)
● Windows 10 IoT Enterprise LTSB 2016 OS (64 bits)
Tablet Specifications
CPU Support: Intel® AtomTM x5-Z8550 Quad CoreTM
CPU Frequency: 1.44GHz up to 2.4GHz
Display: 7" IPS display with 800 x 1280 resolution w/Anti-fingerprint Multi-Touch P-Cap
O.S. Support: Windows 10 IoT Enterprise LTSB 2016 OS (64 bits)
Memory: LPDDR3 2GB / 4GB
Flash: eMMC 32GB / 64GB
Speaker: 1W
Power Requirement: DC 12V / 24V
G-Sensor: Yes
Ambient Light Sensor: Yes
Vibrator: Yes
Dimensions (W x H x D): 267.84 x 188.5 x 25.2 mm
Weight: 838 g (Pad only)
Certifications: CE / FCC / TELEC
Capacity: 3.7V, 7900mAh
Battery Operation: Up to 8 hours (refer to JEITA battery run time measurement)
WiFi + BT: 802.11 ac/a/b/g/n 2T2R for dual band, Bluetooth® 4.1 + EDR
WWAN: Support LTE / UMTS / GSM
GPS: GNSS: GPS / GLONASS / BeiDou / Galileo / QZSS (Optional)
Barcode Scanner: 2D barcode scanner (optional)
Camera: Front camera 5M pixels (optional)
Rear camera 5M pixels (optional)
NFC: NXP NPC300 (optional)
MSR: SecureHead MSR (optional)
Smart Card Reader: Smart card reader (optional) (meet ISO 7816 & EMV Level 1 & 2 certification)
Tablet I/O Ports
SD: Micro SD up to 128GB
USB: USB Type C for charging and data transmission
Cradle Connectors: POGO pin for USB x 1 / power x 1
SIM: 4G SIM card

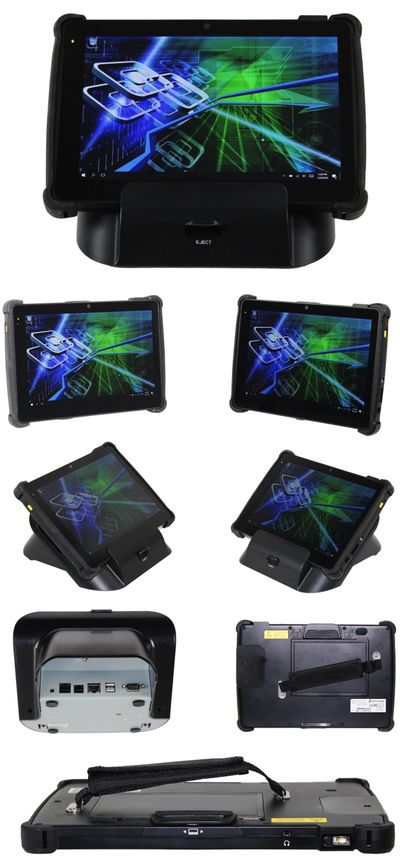

U37-MP 10.1" Mobile POS Station
Specifications:
• TOUCH: 5M Rear Camera (AF) , 2M Front Camera (FF)
• DISPLAY: 10.1-inch IPS, 1280 x 800
• CPU: Intel Cherry Trail Z8350 1.84GHz
• MEMORY: 4 GB DDR3L-1600mhz
• HARD DRIVE: 32GB eMMC (Upgradable)
• MICRO SD: Up to 256GB
• USB PORTS: 1 x USB 3.0 1 x Pogo Pin
• CAMERA: 5M Rear Camera (AF) , 2M Front Camera (FF)
• WIFI: Internal Antenna 802.11 B/G/N+ac 50m with Bluetooth
• SENSOR: 1G-Sensor, Light Sensor, Gyroscope
• PERIPHERAL OPTIONS: MSR, 2D Barcode Scanner,
Finger Print Reader
• DOCKING STATION: 2x USB2.0 (Type A), 1 x COM (DB9),
1 x RJ45, 1 x DC Jack, 1 Pogo Pin
• WEIGHT TABLET: .95kg (2lbs)
• WEIGHT CRADLE: 1.23kg (2.7lbs)
• BATTERY: 17000mAh (1S2P)
• POWER ADAPTER: Input 100V ~ 240V/50 ~ 60Hz Input;
Output : 5V/3A 15W
• DIMENSIONS TABLET: 310 (W) x 188 (H) x 18 (D) mm
• DIMENSIONS CHARGING CRADLE: 220 (W) x 108 (H) x
161 (D) mm
• CERTIFICATIONS: FCC Class A, CE, RoHs
• OPERATING TEMP: 0°C~40°C
• OPERATING HUMIDITY: 20% ~ 80% RH non-condensing
• OPERATING SYSTEMS: Win10 IoT Ent LTSB OS
Options:
• 3 Track Programmable Magnetic Card Reader
• 2D Barcode Scanner
• Finger Print Reader
• NFC Reader
