All In Ones

U37-J1900 Series "AIO" Terminal 15"


CZ Series 15”, 17” & 22” Quad Core J1900 AIO


U57-CZ Series iCore i5 15", 17" & 22"


14" AIO Terminal Combo

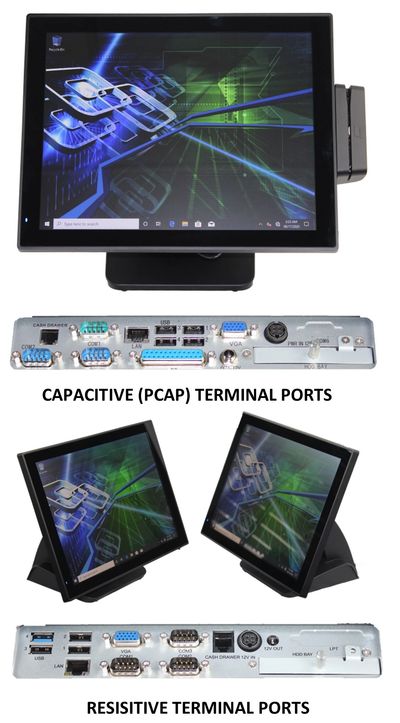

U37-J1900 Series “AIO” Terminal


U37-J1900R & U37-J1900 AIO” Terminals

Experience quality, design, and style in our most popular all-in-one “AIO” terminal solution. This reliable and state of the art AIO Terminal features a Bay Trail Celeron J1900 (2.0 GHz) processor, true fanless cooling system, optional rear mounted 2nd display (power built in), and a compact base design which is ideal for small workplace operations. Available in 5 wire resistive touch technology or Projective capacitive multi -touch technology.

U37-J1900R Series (15” AIO) Specifications:

• TOUCH: 5-Wire Resistive Type or or Projective Capacitive

• CPU: Intel® Bay Trail-D Platform, Celeron® Processor J1900 (2.0GHz, 2M Cache)

• MEMORY: 4 GB DDR3-1333

• HARD DRIVE: 120GB SSD (Upgradable)

• VIDEO GRAPHICS: Intel HD Graphics Support

• BRIGHTNESS: 300 Nits

• RESOLUTION: 1024 X 768 Pixel

• CONTRAST: 1000:1

• USB PORTS: 5 x USB 2.0 (External, 4 x bottom/ 1 x side)

• VIDEO PORTS: 1 x DB-15, Female

• LAN: 1x RJ45 Gigabyte

• COM PORTS: 3 x COM DB9, with power output, +5VDC/+12VDC, selectable by Jumper

• PARALLEL: 1 x DB25 Parallel Port

• SOUND: 1 x Internal Speaker

• CASH DRAWER: 1 x RJ-11, +12/+24 VDC

• DC OUT: 1 x 12VDC Jack for Customer Display or 2nd Display

• WEIGHT: 30 lbs Gw Includes Packaging

• POWER: External Ac 12V 10amp, universal auto sensing, 36W

• DIMENSIONS 14” x 12.00” x 8” (LxWxH)

• WEIGHT: 12lbs

• MOUNTS: MSR, Rear Display

• CERTIFICATIONS: FCC Class A, CE, RoHs

• OPERATING SYSTEMS: Optional

• POWER: +12VDC 60W,4-pin Connector with Lock (External Adaptor: 100~240 VAC, 50/60HZ)

• LCD DISPLAY: High Bright 15 1024 x 768 16.7M Colors

• OPERATING TEMP: 0°C~40°C

• OPERATING HUMIDITY: 20% ~ 80% RH non-condensing

• OPERATING SYSTEMS: Optional

CZ Series J1900 15”, 17”, & 22” “AIO”


CZ Series 15”, 17” & 22” Quad Core J1900 AIO

Experience quality, design, and style in our most popular all-in-one “AIO” terminal solution . This reliable and state of the art AIO Terminal features a Bay Trail Celeron J1900 (2.0 GHz) processor, true fanless cooling system, optional rear mounted 2nd display (power built in), and a compact base design which is ideal for small workplace operations. Available in 5 wire resistive touch technology or Projective capacitive multi-touch technology.

U57-CZ-15J1900, CZ-17J1900, & CZ-22J1900 Specifications:

• TOUCH: 10 point Projective Capacitive

• CPU: Intel® Bay Trail-D Platform, Celeron® Processor 1900 (2.0GHz, 2M Cache)

• MEMORY: 8 GB DDR3-1333

• HARD DRIVE: 256GB SSD (Upgradable)

• VIDEO GRAPHICS: Intel HD Graphics Support

• BRIGHTNESS: 400cd/m2

• RESOLUTION: 1024 x 768 Pixel (15”), 1280 x 1024 (17”), 1920 x 1080 (21.5”)

• CONTRAST: 500:1(15"), 800:1(17"), 1000.1 (21.5”)

• USB PORTS: 6 x USB 2.0 (External, 4 x bottom/ 1 x side)

• VIDEO PORTS: 1 x DB-15, Female (HDMI Option)

• LAN: 1x RJ45 Gigabyte

• COM PORTS: 2 x COM DB9, with power output, +5VDC/+12VDC, selectable by Jumper

• PARALLEL: 1 x DB25 Parallel Port (Special Order)

• SOUND: 1 x Internal Speaker Microphone & earphone

• WIFI: Internal Antenna 802.11 B/G/N 50m with Bluetooth

• DC OUT: 1 x 12VDC Jack for Customer Display or 2nd Display

• WEIGHT: 15"(4.4kgs) 10lbs , 17"(4.8kgs) 11lbs (No Base)

• POWER: 110-240V/50-60HZ, AC power input

• DIMENSIONS: 15” 14.25” x 2” x 11.5” (LxDxH) excluding base

• DIMENSIONS: 17” 15.5” x 2” x 13” (LxDxH) excluding base

• DIMENSIONS: 22” 21.75” x 2” x 12.75 ”(LxDxH) excluding base

• MOUNTS: 100mm & 75mm blind insert vesa mount

• CERTIFICATIONS: FCC Class A, CE, RoHs

• POWER: +DC 12V/10A Output

• LCD DISPLAY: High Bright 16.7M Colors

• OPERATING TEMP: 0°C~40°C

• OPERATING HUMIDITY: 20% ~ 80% RH non-condensing

• OPERATING SYSTEMS: Optional

Options:

• 3 Track Programmable Magnetic Card Reader

• 2 x 20 Vacuum Florescent Rear Mounted Display

• 10”, 12” , 15” rear or Pole mounted customer display

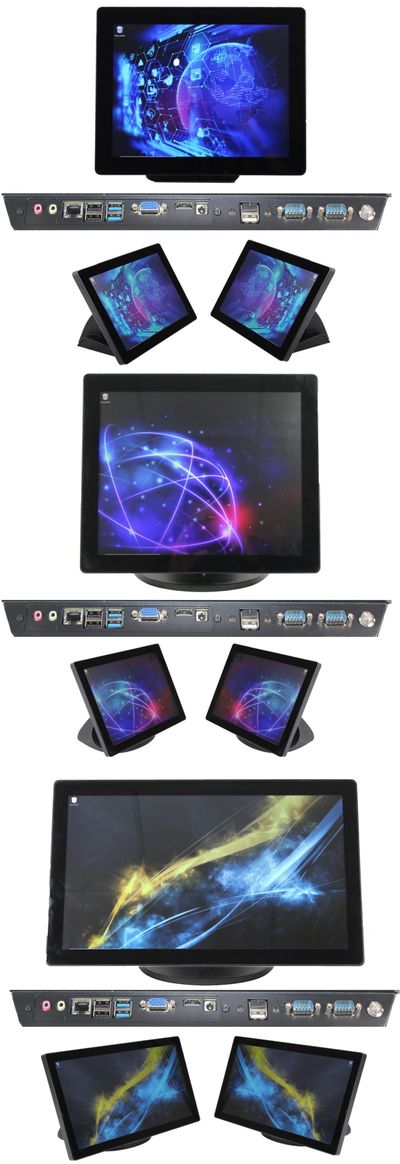

U57-CZ Series iCore i5 15” & 17” 22”


CZ Series 15”, 17” & 22” Intel i5 AIO Terminals

Experience quality, design, and style in our most popular all-in-one “AIO” terminal solution . This reliable and state of the art AIO Terminal features a Intel ICORE Processor, optional rear mounted 2nd display, and a compact base design which is ideal for small workplace operations. Available in 5 wire resistive touch technology or Projective capacitive multi-touch technology. Available in 15”, 17” & 22” configurations with or without 2nd hard disk drive.

U57-CZ-15i5 ,CZ-17i5 & CZ-22i5 AIO Terminals Specifications:

• TOUCH: 10 point Projective Capacitive

• CPU: i5 5200U, clock speed 2.2ghz, TDP 13W

• MEMORY: 8 GB DDR3-1333

• HARD DRIVE: 256GB SSD (Upgradable)

• VIDEO GRAPHICS: Intel HD Graphics Support

• BRIGHTNESS: 400cd/m2

• RESOLUTION: 1024 X 768 Pixel (15”), 1280 x 1024 (17”) 1920 x 1080 (21.5”)

• CONTRAST: 500:1(15"), 800:1(17"), 1000.1 (21.5”)

• USB PORTS: 6 x USB 2.0 (External, 4 x bottom/ 1 x side)

• VIDEO PORTS: 1 x DB-15, Female (HDMI Option)

• LAN: 1x RJ45 Gigabyte

• COM PORTS: 2 x COM DB9, with power output, +5VDC/+12VDC, selectable by Jumper

• PARALLEL: 1 x DB25 Parallel Port (Special Order)

• SOUND: 1 x Internal Speaker Microphone & earphone

• WIFI: Internal Antenna 802.11 B/G/N 50m with Bluetooth

• DC OUT: 1 x 12VDC Jack for Customer Display or 2nd Display

• WEIGHT: 15"(4.4kgs) 10lbs , 17"(4.8kgs) 11lbs (No Base)

• POWER: 110-240V/50-60HZ, AC power input

• DIMENSIONS: 15” 14.25” x 2” x 11.5” (LxDxH) excluding base

• DIMENSIONS: 17” 15.5” x 2” x 13” (LxDxH) excluding base

• DIMENSIONS: 22” 21.75“ x 2” x 12.75” (LxDxH) excluding base

• MOUNTS: 100mm & 75mm blind insert vesa mount

• CERTIFICATIONS: FCC Class A, CE, RoHs

• POWER: +DC 12V/10A Output

• LCD DISPLAY: High Bright 16.7M Colors

• OPERATING TEMP: 0°C~40°C

• OPERATING HUMIDITY: 20% ~ 80% RH non-condensing

• OPERATING SYSTEMS: Optional

Options:

• 3 Track Programmable Magnetic Card Reader

• 2 x 20 Vacuum Florescent Rear Mounted Display

• 10”, 12” , 15” rear or Pole mounted customer display

14" Terminal, Cash Drawer, Printer & Scanner Combo


14" Wide Screen AIO Series Complete POS Workstation

The U57-14AIOJ19COMBO Ultimate POS workstation combo. 14" J1900 All In One POS workstation combined with our 3 in 1 cash drawer that has been engineered with an 80mm thermal printer and barcode table top 2D Scanner. The terminal boasts a powerful Intel quadcore Celeron J1900 processor with 4gb ram and 120gb MSATA The cash drawer utilizes a 3 bill 5 coin cash till, Bluetooth enabled printer and USB Scanner.

All built into a small but powerful workstation

Specifications:

• TOUCH: 10 point Projective Capacitive

• CPU: Intel® Bay Trail-O Platform, Celeron® Processor 1900 (2.0GHz, 2M Cache)

• MEMORY: 4 GB DDR3-1333

• HARD DRIVE: 120GB MSATA (Upgradable)

• VIDEO GRAPHICS: Intel HD Graphics Support

• BRIGHTNESS: 400cd/m2

• RESOLUTION: 1366 x 768 Pixel

• CONTRAST: 500:1

• USB PORTS: 6 x USB 2.0 (External, 4 x bottom/ 1 x side)

• VIDEO PORTS: 1 x DB-15, Female (HDMI )

• LAN: 1 x RJ45 Gigabyte

• COM PORTS: 1 x COM DB9, with power output, +5VDC/

• +12VDC, selectable by Jumper

• SOUND: 1 x Internal Speaker Microphone & earphone

• WIFI: Internal Antenna 802.11 B/G/N 50m with Bluetooth

UZ-HS4380 Cash Drawer 3/5

• BILL/COIN TRAY: 3 bill 5 coin

• LOCK: 3 position key lock

• MICRO SWITCH: Yes

• BLUETOOTH: Yes

• VOLTAGE: 12 volt

Built in Printer

• CALIBER: EM638

• PRINT METHOD: Thermal

• PRINT SPEED: 60mm/SEC

• PAPER WIDTH: 80MM

• PRINT DENSITY: 8 point/mm

• PAPER HANDLING: Tear

• PAPER DETECTION: Yes

• LIGHT SENSORS: Yes

• PRINT HEAD LIFE: 50KM

Built in Scanner

• SCANNER MODEL: GT-760 20

• POWER SUPPLY: DC5V/300mA

• INTERFACE:USB,RS232

• SENSOR: Planar CMOS

• PROCESSOR: 32-BIT MCU

• SCANNING SPEED: 200 Times per sec .

• SCANNING MODE: Automatic detection

• SCANNING AREA: 5*5CM-30*30cm

• PROMPT: Buzzer & indicator light
